オプティカルフローの例

function mat = cvreal2d_to_mat(cv)
# Read2D 型を要素とする配列（OpenCV のデータ）cv を，Octave の2次元配列 mat にコピー
for x = [1:cv.width]
  for y = [1:cv.height]
    mat(y,x) = cvGetReal2D(cv, y-1, x-1);
  end
end
endfunction

function cv = mat_to_cvreal2d(mat)
# Octave の2次元配列 mat を，Read2D 型を要素とする配列（OpenCV のデータ）cv にコピー
height = size(mat)(1);
width = size(mat)(2);
for x = [1:width]
  for y = [1:height]
    cvSetReal2D(cv, y-1, x-1, mat(y,x));
  end
end
endfunction

# モーションベクターの例
# 画像読み込み時に「CV_LOAD_IMAGE_GRAYSCALE」を指定しているので，自動的に濃淡画像に変換される

# read and convert to grayscale image
Lagrangian_multiplier = 64;
maximum_iteration = 100;
epsilon = 0.02;
img1 = cvLoadImage("20090701001_avi01_001000.png", CV_LOAD_IMAGE_GRAYSCALE);
img2 = cvLoadImage("20090701001_avi01_001002.png", CV_LOAD_IMAGE_GRAYSCALE);
# CV_32FC1 を要素とする行列
vx = cvCreateMat(img1.height, img1.width, CV_32FC1);
# CV_32FC1 を要素とする行列
vy = cvCreateMat(img1.height, img1.width, CV_32FC1);
cvSetZero(vx);
cvSetZero(vy);
criteria = cvTermCriteria( CV_TERMCRIT_ITER | CV_TERMCRIT_EPS, maximum_iteration, epsilon );
cvCalcOpticalFlowHS( img1, img2, 0, vx, vy, Lagrangian_multiplier, criteria );
# cvCalcOpticalFlowLK( img1, img2, cvSize(1,1), vx, vy );

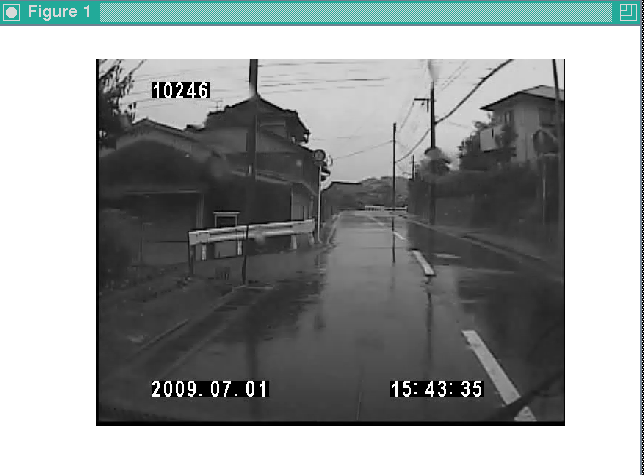

# image copy
img1mat = cvreal2d_to_mat(img1);
colormap(gray(256));
imshow(img1mat, [min(min(img1mat)) max(max(img1mat))]);
input("Please press enter to continue");

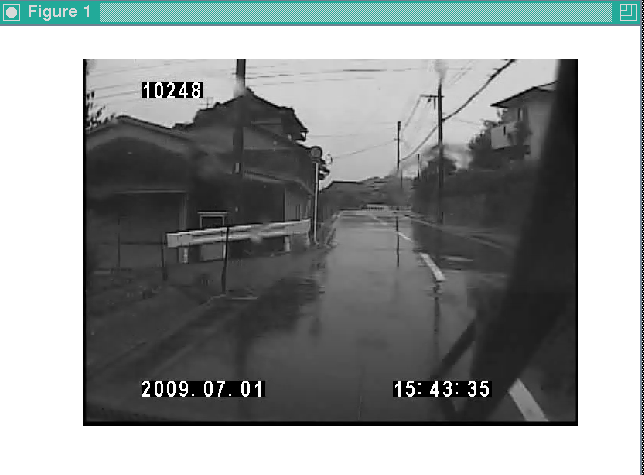

img2mat = cvreal2d_to_mat(img2);
colormap(gray(256));
imshow(img2mat, [min(min(img2mat)) max(max(img2mat))]);
input("Please press enter to continue");

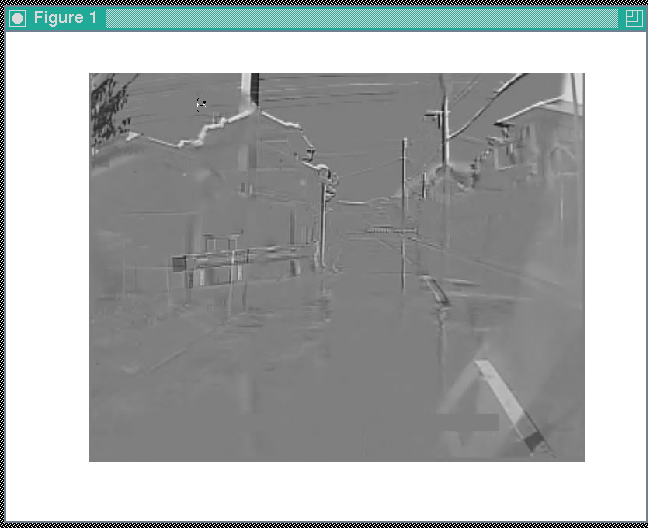

# vx, vy copy
vxmat = cvreal2d_to_mat(vx);
vymat = cvreal2d_to_mat(vy);

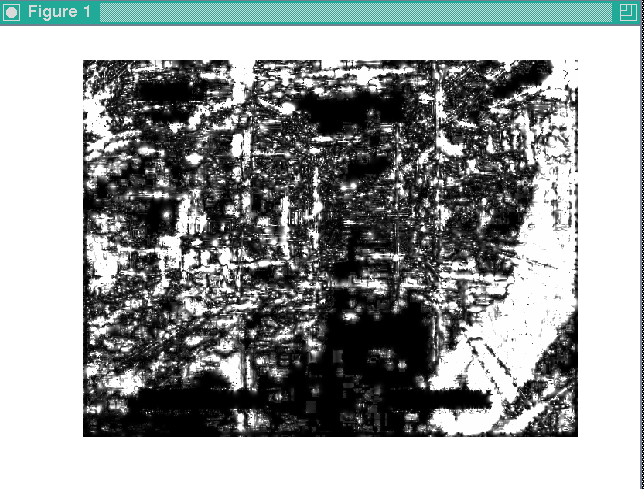

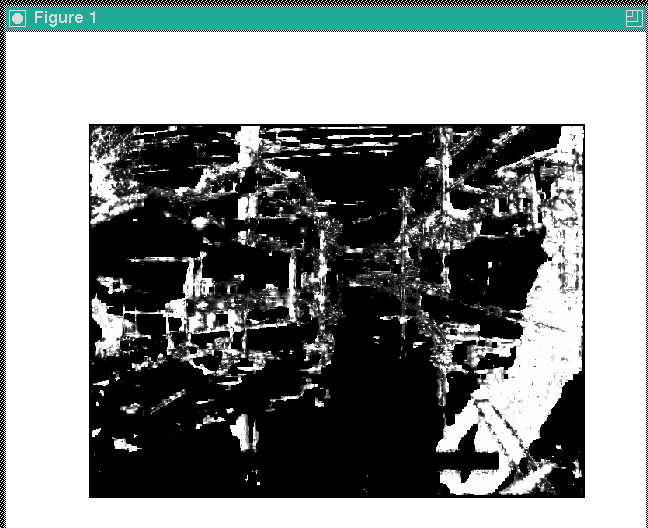

p = max(-16, min(16, abs(vxmat) + abs(vymat)));
colormap(gray(256));
imshow(p, [min(min(p)) max(max(p))]);
input("Please press enter to continue");

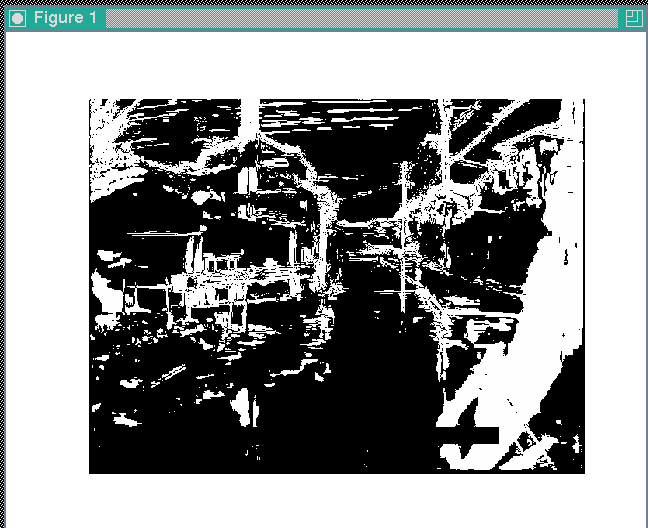

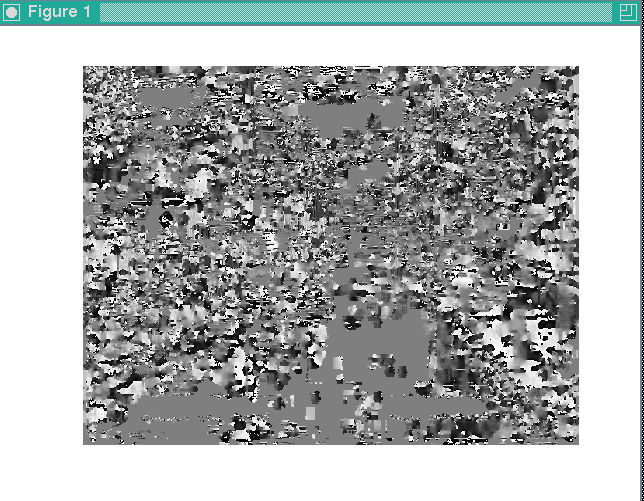

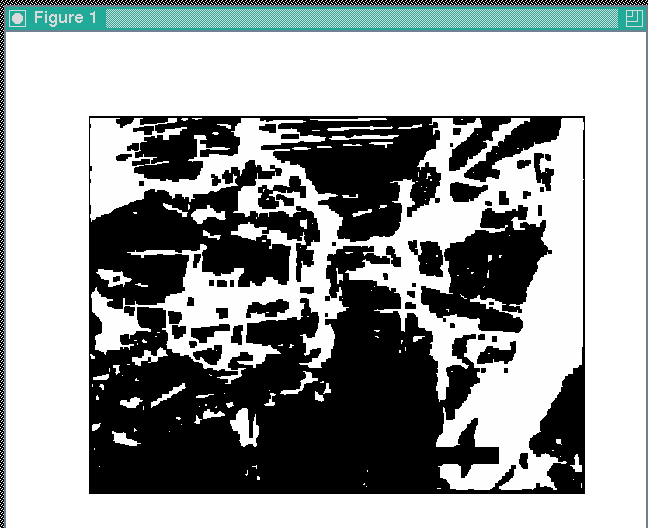

mask = ( abs(vxmat) + abs(vymat) ) > 1;
a = atan2(vymat, vxmat) .* mask;

colormap( rainbow(256) );
imshow(a, [min(min(a)) max(max(a))]);
input("Please press enter to continue");
